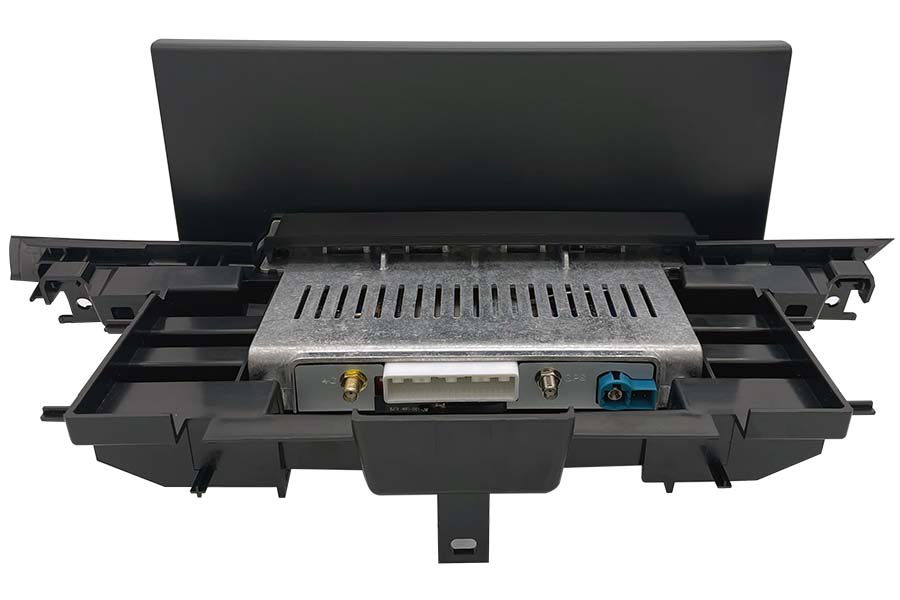

Audi A4/S4/RS4/A5/S5/RS5 B9 LHD 2015-2022 Aftermarket Radio Upgrade (Free Backup Camera)
Aftermarket GPS Navigation Head Unit is specially designed to upgrade Audi A4/S4/RS4/A5/S5/RS5 LHD 2015-2022 radio system. It has the same plugs and harness as the original radio, plug, and play. This product only replaces the original LCD screen unit and retains the factory FM/CD unit, so the original Audi car computer/CD/FM/AM/Sirius/XM will still work as before.
Audi A4/S4/RS4(B9) LHD 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 with RMC/3G+/MIB
Audi A5/S5/RS5 LHD 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 with RMC/3G+/MIB
Send a photo of the dashboard(radio system) to email@example.com if you are not sure about compatibility.
Android Version: 12.0 (genuine specs).
1. Note the screen is fixed, it does not flip down as the original display screen.
2. What is the current radio system on my car?
Send a photo of the existing version information of the radio system to firstname.lastname@example.org if you are not sure about compatibility.
3. If your car has the AUX(External audio input) audio option, then you don't need the AMI-AUX cord.
If your car has the AMI audio option(External audio input), then you need to use the Audi AMI-AUX adapter cord. After plugging this cord, the AMI will change to AUX on the screen.
Installation Instructions: https://www.sigmacarstereo.com/docs/Installation_instructions/AD-1214.pdf
|Operating system||Android 12|
|CPU||64-Bit 8-Core Cortex-A53 1.8GHz|
|Display||10.25"(12.3" optional) 1920*720 Capacitive Touch Screen|
|Network||Wi-Fi & 4G Lte|
|USB port||Two USB ports|
|Camera Input||One camera input(RCA port)|
|Microphone||Internal and External|
|GPS receiver||Built-in GPS module and external GPS antenna|
Is this product plug-and-play? Do I need to program or code my Audi? Do I need to buy an external GPS antenna? Can I still check the car info on the OEM screen?
Answer: Yes, it is plug-and-play, it has the same plugs and harness as the original Audi system. You do not need to program your car when installing. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Audi car info as before.
How do I switch the new upgrade system to the original Audi interface?
Answer: Please tap the “Car Info” icon on the home screen to switch to the original Audi car computer screen.
How do I switch the original Audi screen to the new upgrade system?
Answer: Please tap the screen.
Why it shows a black screen with no signal when tapping “Car Info” to switch back to the original Audi car computer screen?
Answer: Please check the CAR-LVDS port. Make sure you connect the original LVDS plug (removed from the original screen) to the CAR-LVDS port on the new screen.
Why there is no audio from the new upgrade system?
1. Please press the MEDIA button on the radio panel and check the audio source options. Make sure the External Audio input(AUX) is activated.
Note if your car has the AMI option instead of AUX, then you need to plug the Audi AMI-AUX cord(this cord is sold separately) into the AMI port in the glove box on passenger side. After plugging this cord, the AMI will change to AUX on the screen.
2. Then tap the screen to access the new upgrade system. You should be able to hear sound.
