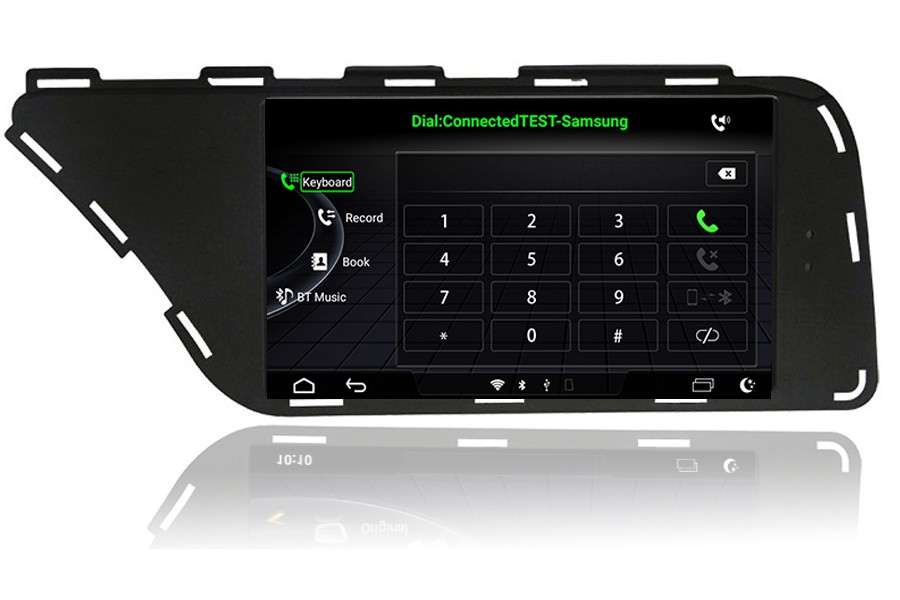

Audi A5/S5/RS5(B8) 2007-2016 LHD Autoradio GPS Aftermarket Android Head Unit Navigation Car Stereo dab (Free Backup Camera)
Aftermarket GPS Navigation Head Unit is specially designed to upgrade Audi A5/S5/RS5(B8) 2007-2016 factory radio system. It has the same plug and harness as the original radio, plug, and play. This product only replaces the original LCD screen unit and retains the factory FM/CD head unit, so the original Audi car computer/CD/FM/AM/Sirius/XM will still work as before.
Audi A5 (Type 8T/8) 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
This product is NOT compatible with Audi S5/RS5.
We recommend the product with 10.25 inches for RHD link here. This 7-inch product is only compatible with LHD.
Before placing the order, you need to know the following items about your car:
1. What is the current radio system on my car? Send a photo of the dashboard(radio system) to email@example.com if you are not sure about compatibility.
Android Version: 12.0 (genuine specs).
2. If your car has an MMI system, then you can use the original joystick and touchscreen to operate the new Android screen.
You can still use the original joystick to operate the original Audi screen. The touchscreen does not operate the original Audi screen.
3. Please press the MEDIA button on the radio panel and check the audio source options.
If your car has the AUX(External audio input), then you don't need the AMI-AUX cord.
If your car has the AMI, then you need the Audi AMI-AUX adapter cord. Please contact us before placing an order. Otherwise, there will be no audio after installing our product.
Factory standard radio(NON-NAVI) FYI:
|64-Bit 8-Core 2.0GHz
|7" 1024*600 Capacitive Touch Screen
|One micro sd card slot
|Three USB ports
|One camera input(RCA port)
|Built-in GPS module and external GPS antenna
Is this product plug-and-play? Do I need to program or code my Audi? Do I need to buy an external GPS antenna? Can I still check the car info on the OEM screen?
Answer: Yes, it is totally plug-and-play, it has the same plugs and harness as the original Audi system. You do not need to program your car when installing. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Audi car info as before.
How do I switch the new upgrade system to the original Audi interface?
Answer: Please tap the “Original” icon on the home screen to switch to the original Audi interface.
How do I switch the original Audi interface to the new upgrade system?
Answer: Please tap the screen.
Why it shows a black screen with no signal when tapping “Original” to switch back to the original Audi interface?
Answer: Please check the CAR-LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.
Why there is no audio from the new upgrade system?
1. Please press the MEDIA button on the radio panel and check the audio source options. Make sure the External Audio input(AUX) is activated.
Note if your car has the AMI option instead of AUX, then you need to plug the Audi AMI-AUX cord(this cord is sold separately) into the AMI port in the glove box on the passenger side. After plugging this cord, the AMI will change to AUX on the screen.
2. Then tap the screen to access the new upgrade system. You should be able to hear sound.
Where should I mount the main metal box? The original LVDS cord is too short to mount it in the glove box?
Please take apart the glove box on the passenger side there is a hole that allows you to put the metal box hide behind the screen. Then the LVDS cord is long enough.
