Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD

Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD
Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD
Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD
Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD
Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD
Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD
Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD
Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD
Reverse Camera for BMW 3 Series, 5 Series, X1, X3, X5, X6, 7 Series OLD
$81
  • Stock: In Stock
  • Model: HS8020

Reverse Camera for:

BMW 3 Series

BMW 5 Series

BMW X1

BMW X3

BMW X5

BMW X6

BMW 7 Series OLD

  • Display Guard Line on the reverse image
  • Automatically display reverse image when you put the gear in the reverse

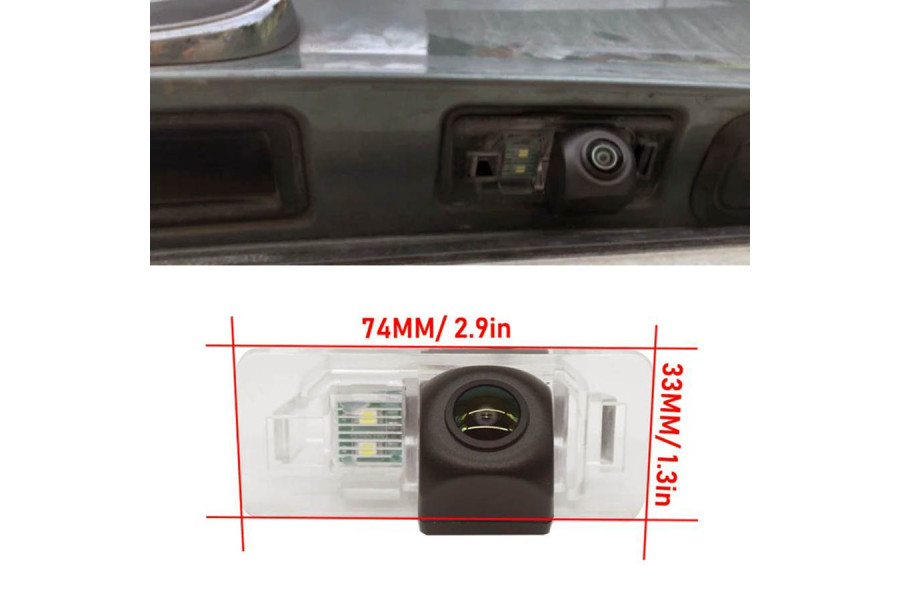

  • Replace one of the original license plate lampshade, no need to drill hole
  • Designed is reference to the original car style, installation is simple and beautiful, totally plug and play
  • The original Sony CCD chip, clear and stable image
  • With wide-angle glasses lens, wide viewing angle without dead corner
  • Using a unique production process, waterproof tight durability
  • Multiple circuit protection design, stable and reliable quality

NOTE: the camera you received may not look exactly the same as picture because molding keep on updating, but they are guaranteed to fit to your car. The design trends is to utilize original bulbs instead of the built-in LED lights, this is a good solution to keep the license plate light consistent.
More information: most of cars came with two bulbs above the license plate, usually they are in warm color, while built-in LED are in cool color, this caused color inconsistent if you installed a camera with built-in LEDs



Image Sensors             SONY CCD lens
IP rating   IP68
TV System   PAL or NTSC
Effective Pixels   628×582/628×492
Sensing Area(mm)   4.9×3.7
Resolution(TV Line)   480
Horizontal Sync Frequency (KHZ)   15.625/15.734
Vertical Sync Frequency (HZ)   50/60
Video output   1Vp-p,75Ohm,RCA male
Gamma Consumption   0.45
AGC   Auto
BLC   Auto
S/N Ratio   Betterthan 48dB
Lens Angle (Deg.)   170°diagonal
Current Consumption (mA)   200
Power Supply (DCV)   12V
Operating Temperature (Deg.C)   -20~+70(RH95%MAX.)
Storage Temperature (Deg.C)   -40~+80(RH95%MAX.)
Size   Same as the number plate lampshade of the original car
LED lamp   Inside the camera if camera has built-in LED light
Current Consumption (mA)   30~60mA
