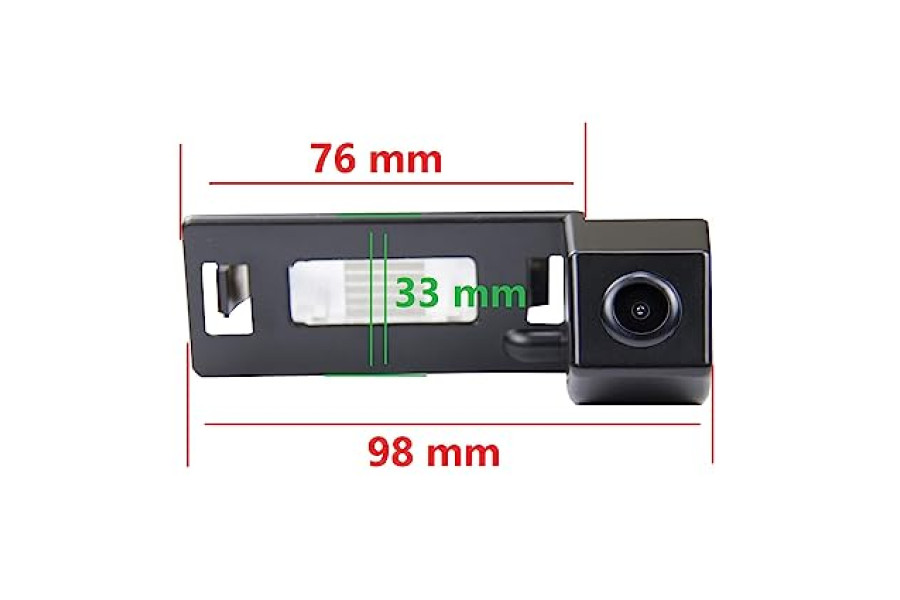

Reversing backup Camera for Audi A4L, A1, Q5
- Availability: In Stock
- Model Number: 86-852
This product could fit all the below models as expected:
- AUDI A1 2011-2012
- A4(B8)4d 5d 2008-2012
- A4(B8)Allroad 2010-2012
- A5 5d Sportback 2008-2012
- A5 2d Coupe 2008-2012
- A5 S5 2d Cabriolet 2008-2012
- TT(S)2d Coupe 2007-2012
- Q5 2009-2012
- TT(S)2d Roadster 2007-2012
- TT RS 2d Coupe 2010-2012
Technique Parameter:
1. TV system: NTSC
2. Resolution: 480/520 TV lines
3. Lens angle:170°
4. S/N ratio: more than 48db(AGC-OFF)
5. Video Color: Colorful
6. Video Output: 1.0Vp-p,75Ω
7. Image Device: 1/4 inch color
8. Sensing area: 5.78 x 4.19mm
9. Sync. system: internal
10.Power supply: DC 12V
11,White Balance: Auto
12.Waterproof Class: ip 66
13.Effective pixels: 628 x 586 Pixels
14.Electronic Shutter: 1/60-1/10000 seconds
15.Current Consumption: ≤150mA
16.Current consumption: 90mA Max
17.Storage temperature:-40°C to +60°C, RH95% Max
18.Minimum illumination:0.3Lux/F1.2
19.Operating Temperature:-30°C to +50°C, RH95%
Package Content:
1 x Car CCD Camera
1 x 6M video cable
1 x 1M power cable
1 x User Manual
NOTE: the camera you received may not look exactly the same as the picture because molding keeps on updating, but they are guaranteed to fit your car. The design trend is to utilize original bulbs instead of the built-in LED lights, this is a good solution to keep the license plate light consistent.
More information: most of the cars came with two bulbs above the license plate, usually they are in warm color, while built-in LEDs are in cool color, this causes color inconsistency if you installed a camera with built-in LEDs.
Image Sensors | SONY CCD lens | |
IP rating | IP68 | |
TV System | PAL or NTSC | |
Effective Pixels | 628×582/628×492 | |
Sensing Area(mm) | 4.9×3.7 | |
Resolution(TV Line) | 480 | |
Horizontal Sync Frequency (kHz) | 15.625/15.734 | |
Vertical Sync Frequency (HZ) | 50/60 | |
Video output | 1Vp-p,75Ohm,RCA male | |
Gamma Consumption | 0.45 | |
AGC | Auto | |
BLC | Auto | |
S/N Ratio | Better than 48dB | |
Lens Angle (Deg.) | 170°diagonal | |
Current Consumption (mA) | 200 | |
Power Supply (DCV) | 12V | |
Operating Temperature (Deg. C) | -20~+70(RH95%MAX.) | |
Storage Temperature (Deg. C) | -40~+80(RH95%MAX.) | |
Size | Same as the number plate lampshade of the original car | |
LED lamp | Inside the camera if the camera has a built-in LED light | |
Current Consumption (mA) | 30~60mA |
