Universal reversing camera drill hole

Universal reversing camera drill hole
  • Availability: In Stock
  • Model Number: PZ416

Available Options

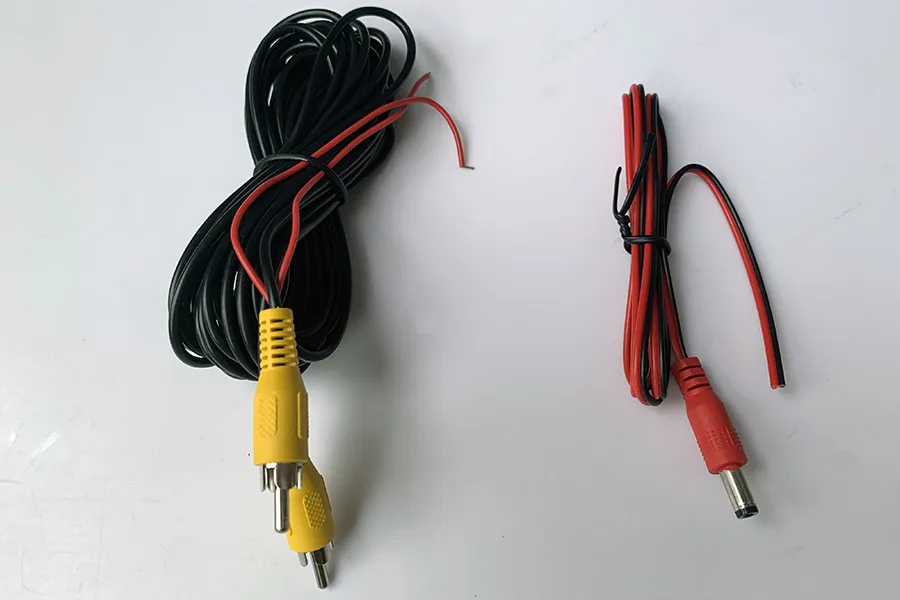

Probably the most ingenious and easiest solution to retrofit a rearview camera. Simply attach it to the trunk rail. A picture display even in the dark and also waterproof. About the Chinch video output, the connection to as good as any monitor possible. The delivery includes video and a 12V connection cable.


  • Camera with high resolution and high-quality color distance display.
  • camera / can filter integrated to prevent flicker sequences
  • Use with or without distance lines
  • Night vision function for optimal operation in darkness
  • Waterproof, rain, and stormproof

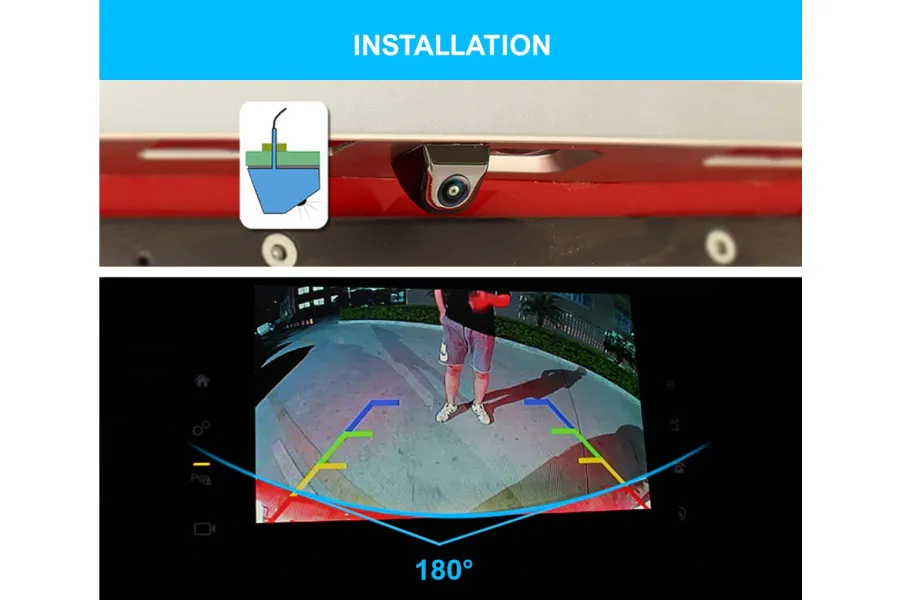

  • Obstacles are seen much easier due to the wide-angle lens with a 180° field of view

Universal fit:

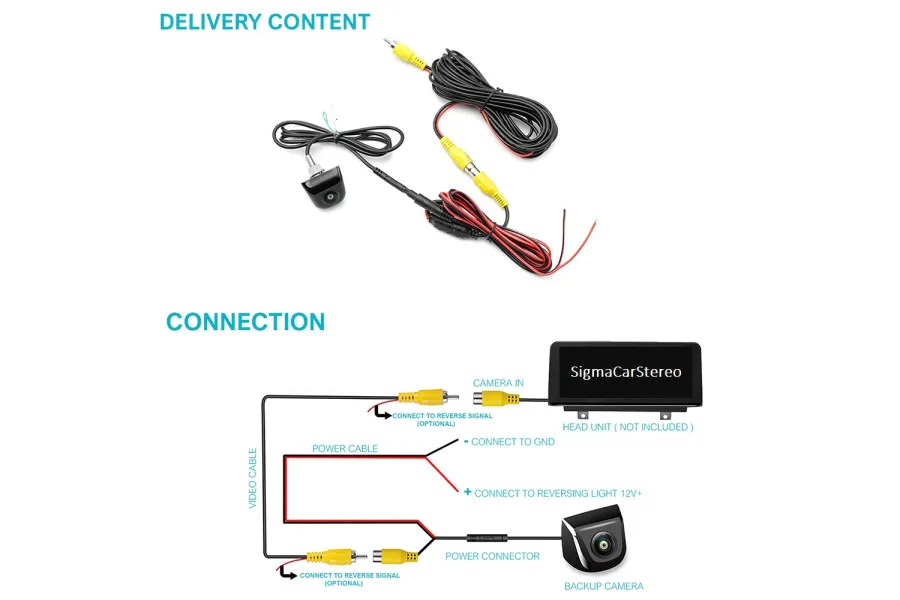

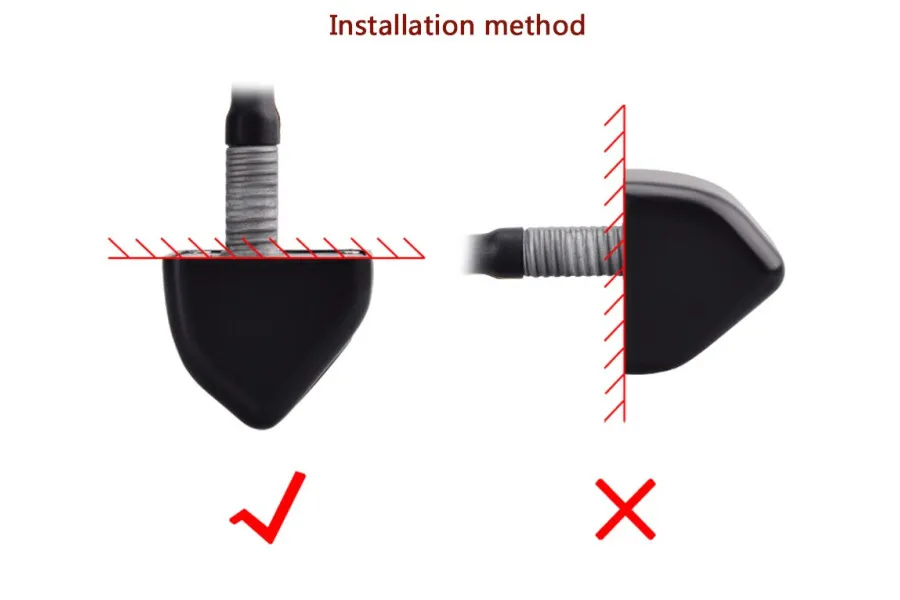

  1. Simply attach it to the trunk molding and connect the power cable to the cables of the rear light.
  2. Pull and connect the chinch video cable to Display

Main Features

  • 1/3 image sensor 3.6mm lens 180° coverage angle
  • color TV system with a resolution of 420 TV lines
  • good resolution 628(H)×586(V) pixels
  • automatic white balance
  • automatic backlight compensation
  • light sensitivity only 0,0 Lux (IR On)
  • Chinch video output Vpp/75Ohm mirror function
  • operated via 12V DC / approx. 150mA incl.12V power cable incl. video cable
  • Dimensions: 23mm x 25mm

Have a question? Contact us

NOTE: If you need CCD HD camera please add “CCD HD” from the options.
