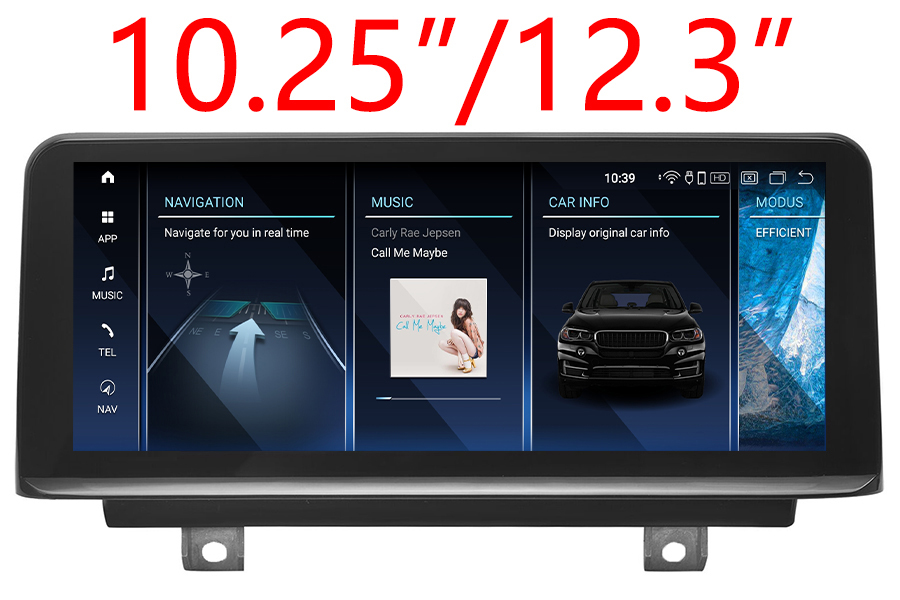

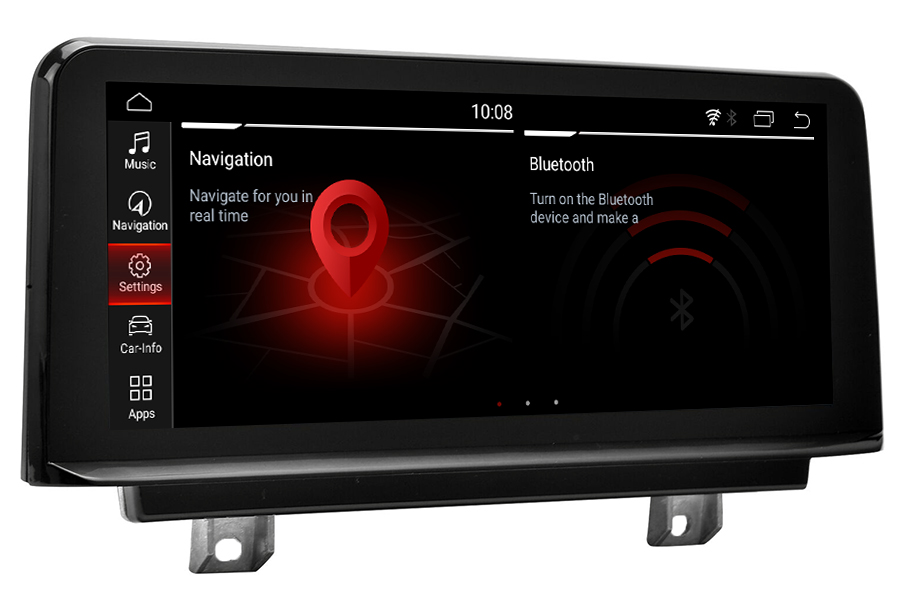

BMW 3 Series(F30)/4 Series(F32) Aftermarket Radio Upgrade
Aftermarket radio upgrade system has a 10.25 inch touchscreen, it is specially designed to upgrade the stock radio system on BMW 3 series(F30/F31/F34/F35/F80) and BMW 4 Series(F32/F33/F36/F82/F83), plug and play, no need to cut wires or code the car, free gps navigation map preloaded for your country. It comes with CANBUS decoder supports the original car information and iDrive control.
BMW 3 Series(F30/F31/F34/F35/F80) 2012, 2013, 2014, 2015, 2016, 2017, 2018
BMW 4 Series(F32/F33/F36/F82/F83) 2013, 2014, 2015, 2016, 2017, 2018
Note above year range is for your reference only. Send a photo of the dashboard(radio system) to www.sigmacarstereo.com you are not sure about fitness.
How do I know what system it is on my BMW?
Original radio system
Note: If your car has EVO system WITHOUT touchscreen, then our product is compatible with your car. But if your car has EVO system WITH touchscreen, then this product is not compatible with your car. Please don't buy it at this moment.
|Display||10.25-inch, resolutions 1280 by 480(1920 by 720 optional)|
|Processor||1.4 GHz 4-core 28nm Qualcomm Snapdragon 425(optional 2.0 GHz 8-core 14nm Qualcomm Snapdragon 625 MSM8953)|
|SD/TF card||One 3.0 card slot(Max 128GB)|
|USB port||USB 3.0 ports(Max 64GB)|
|Video play||MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc.|
|Video input||One video input(RCA port)(optional)|
|Camera input||One camera video input(RCA port)|
|Microphone||Internal & External Microphone(optional)|
|Bluetooth||Bluetooth 5.0 module|
|Audio IC||RK616(Built in Core module)|
|GPS receiver||External GPS antenna(include)|
Is this product plug and play? Do I need to program or code my BMW? Do I need to buy external GPS antenna? Can I still check the car info as the OEM screen?

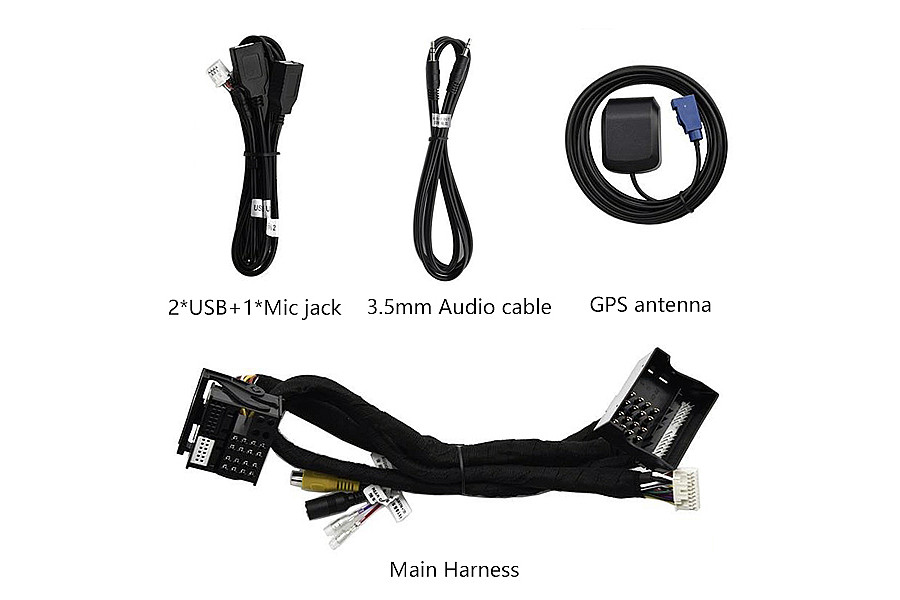

Answer: Yes, it is totally plug and play, it has the same plugs and harness as original BMW system. You do not need to program your car when installation, totally plug and play. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original BMW car info as before.
How do I switch the new Android system to the original BMW CCC/CIC/NBT/EVO interface?
Answer: Please tap “Car-info” icon on the home screen OR long press (3 seconds) MENU button on iDrive to switch to original CCC/CIC/NBT/EVO interface.
How do I switch the original BMW CCC/CIC/NBT/EVO interface to new Android system?
Answer: Please tap the screen or long press (3 seconds) MENU button on iDrive.
Why it shows “No signal” when tap “Car-info” or switch back to original BMW interface?

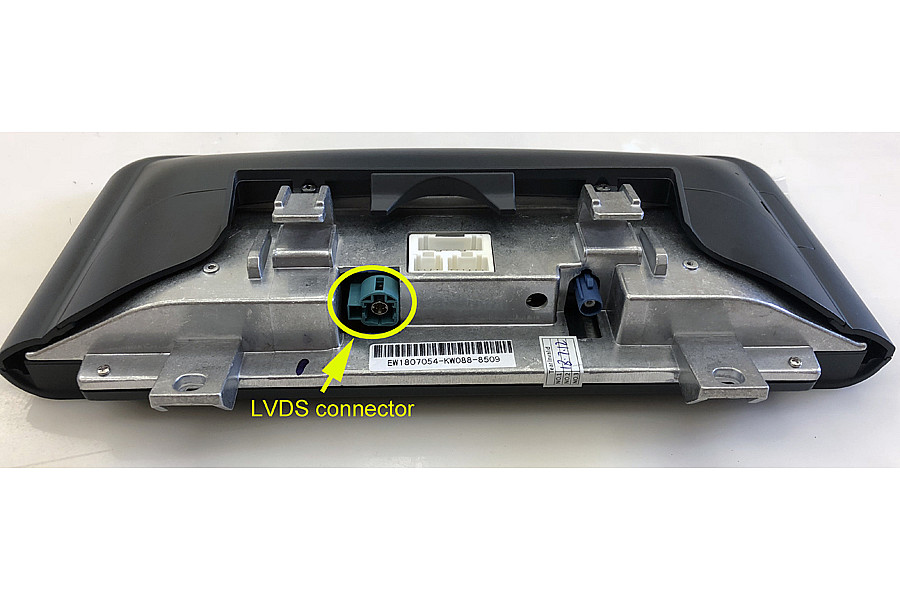

Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.
Different systems have different LVDS plugs.
Why there is no audio from new Android system?
A. Please check the AUX-IN cord. Make sure it is plugged in the AUX-IN port on your car.
B. And also you need to activate AUX-IN function.
CD/Entertainment/External devices/External audio input (AUX front)/activate.
Why does the Sirius/XM radio, original car computer info and factory camera does not display? Why does the AUX-IN volume stucks on zero and not adjustable?
Answer: Please check the fiber optics plug, you need to move it from the original connector to new connector we provided.
My car has factory backup camera, why it does not display when reverse the car?
Answer: Please check the Settings/system setting/Rear camera type. Make sure the "Original camera" option is activated.
